Production introduction
Auto-Pure10B/Auto-Pure10BS/Auto-Pure16A is a miniaturized magnetic bead method nucleic acid extraction and purification instrument, which is developed on the basis of Auto-pure20B and Auto-pure32A. Auto-pure10 series can extract up to 10 samples at the same time, with a maximum sample volume of 5ml. Auto-pure10BS combined with block heating function, small instruments in volume, it is an overwhelming choice for large sample extraction on site, Auto-pure16A can accept 16 samples at most simultaneously, maximum sample volume is 1ml. With different kinds of magnetic bead nucleic acid reagents, nucleic acids in animal and plant tissues, blood, body fluids, criminal examinations and other samples can be quickly extracted.
Auto-pure10 series
1.Auto-Pure10B
Maximum sample processing volume 5 ml, up to 10 samples can be processed at the same time, the instrument has its own lysis well, elution well, heatingfunction.

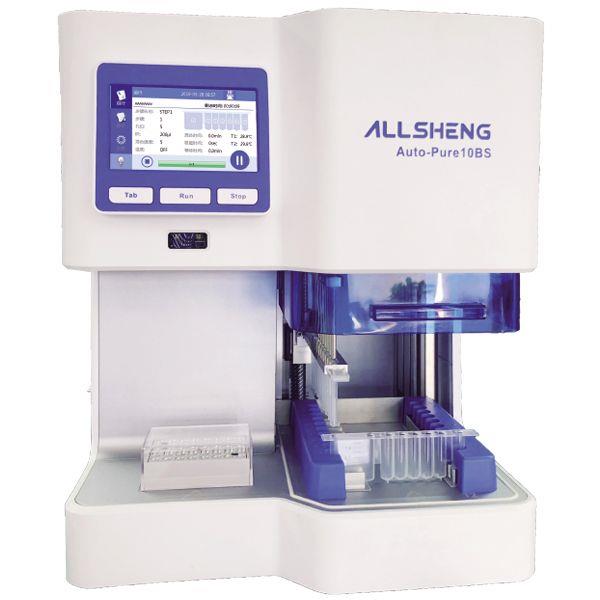

2.Auto-Pure10BS
Composite, maximum sample volume 5 ml, up to 10 samples can be processed at the same time, on the basis of 10B, increase the function of block heating.

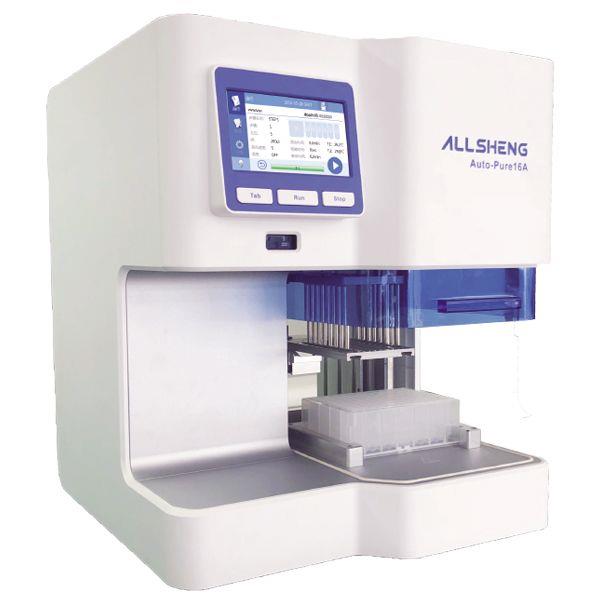

Auto-Pure16A
On the basis of Auto-Pure32A, the maximum sample handling capacity can be reduced, and up to 16 1ml samples can be processed simultaneously. It is an ideal choice for automated extraction in small laborato-ries.
Features
1.4.3 inch touch screen, easy to use.
2.Temperature and protocols can be edited and Saved according to differentreagent requirement.
3.Short operation time: 15~40min per run.
4.High yield of nucleic acid with low magnetic bead loss and good repeatability of results.
5.UV disinfection, avoid cross contamination.
6.Open system which can apply to different magnetic bead extraction reagent.
7.APP software (Android system) which can monitor the system in real time through mobile device.
8.Built-in PC software, APP software, editing, setting, management procedures more simple.
9.Screw rod design which guarantee high operating accuracy; large guide rail design makes the structure more reliable.
10.With QR code identification function, special reagent can be recognized, no need to program or obtain protocols.
11.Open instrument parameters can be set by itself: mixing speed, magnetic absorption and release, cooling fan and other functions.
12.Small volume, suitable for extraction on site.
Modular design with multiple functions as optional

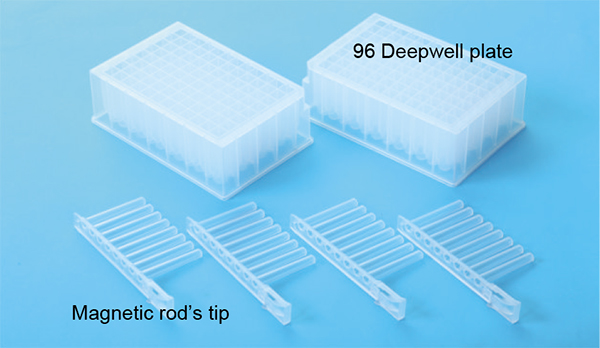

Auto-Pure16A consumable

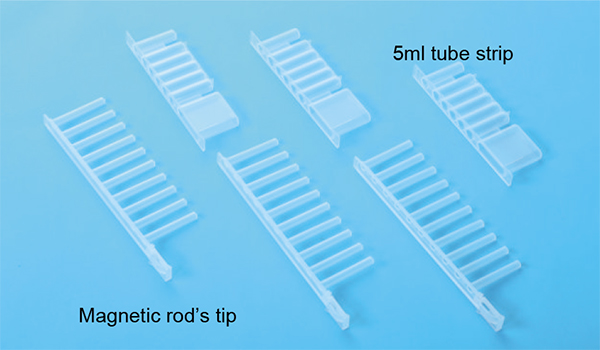

Auto-Pure10B/10BS consumable
Block heating function of Auto-Pure 10BS
10BS integrates dry bath function, heating block can be replaced, different well size block can be selected for different applications, greatly expanding the scope of application of the instrument. For example, it can be used in the incubation and lysising process of sample Pre-Processing , which can reduce the area occupied by the instrument and save the cost of the instrument. In addition, with specific constant temperature amplification detection kit, it can also be used for constant temperature amplification detection of samples, and can quickly check the qualitative results of extracted samples.

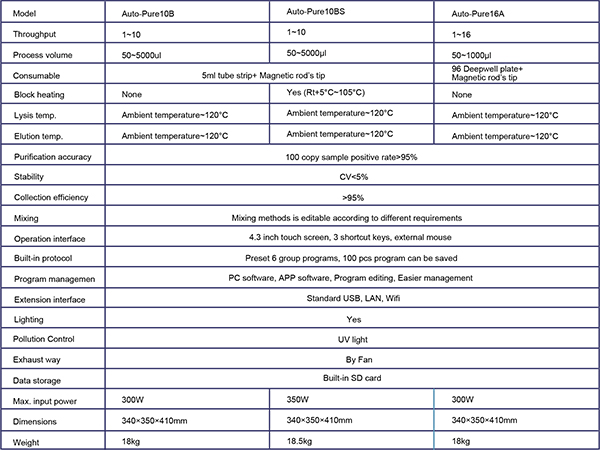

Parameters
